Why does the cutting and engraving graphics reverse (mirror)

Home » troubleshooting » Why does the cutting and engraving graphics reverse (mirror)

This problem may cause from improper setting of the software.

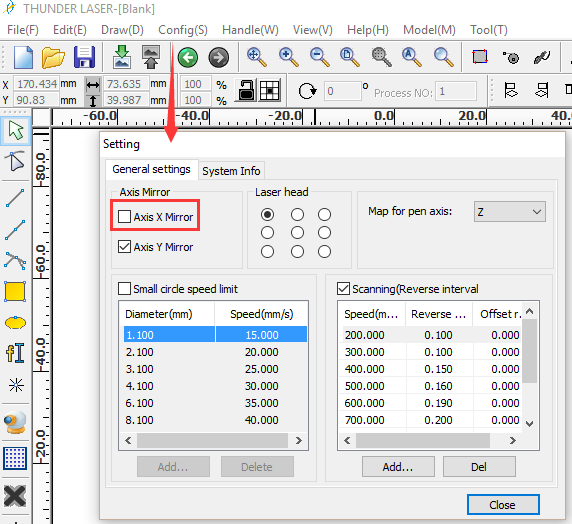

Please start up the laser software RDWorksV8. And then click “Config” – “system setting” on the menu bar. This dialog box appears.

some trouble of laser cutter

Make sure “Axis X mirror” is unticked, and “Axis Y Mirror” is must ticked.

If your setting is different from this, this is the problem why your cutting/engraving reverse. Just reset the config as above.
